Valves and solenoid valves

Suitable for hydraulic, pneumatic, instrumental, medical, food, chemical and refrigeration applications. Total fluid separation solenoid valves. Dosing, ball, cartridge, check valves. Suitable for harsh environments.

EAV 800

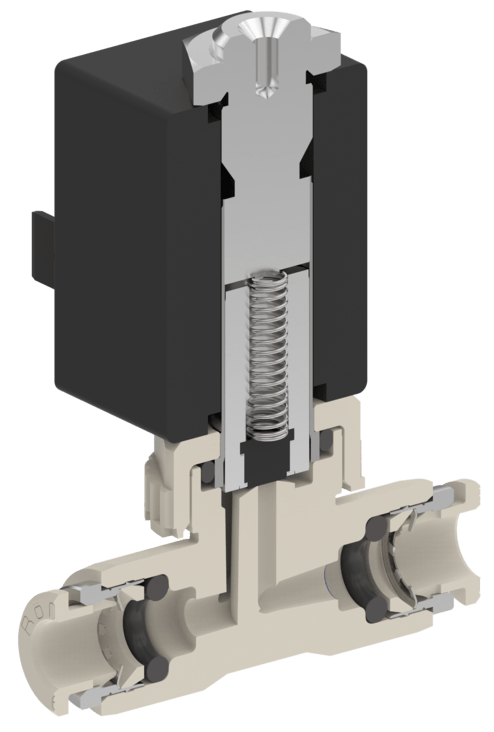

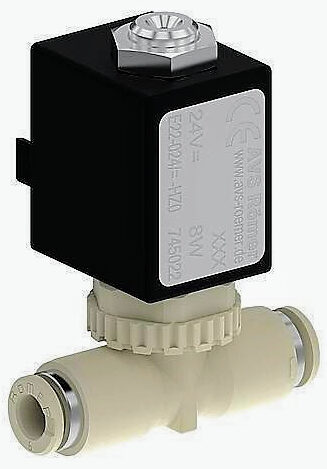

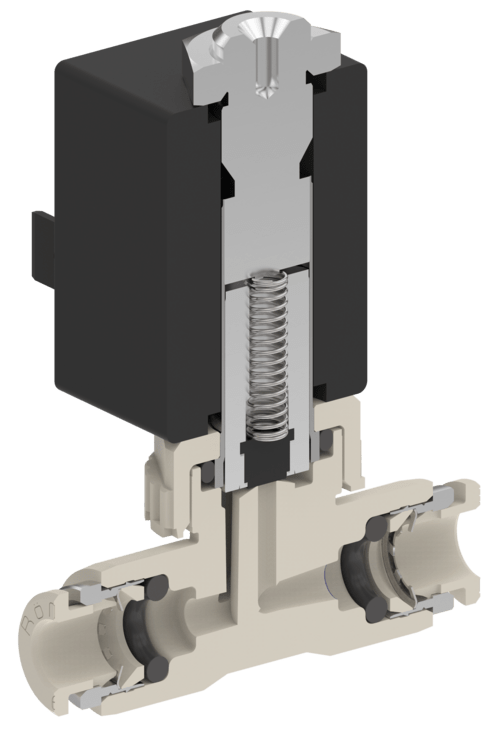

ELETTROVALVOLA EAV800 ELETTROVALVOLA EAV800 sezione

2/2 and 3/2 way direct acting solenoid valve with PPSU body.

The materials chosen make the EAV 800 particularly resistant to corrosion. Perfect for food, beverage and medical applications. Suitable for aggressive fluids, high temperatures and high working pressures Excellent chemical and mechanical resistance makes EAV 800 an economical alternative to stainless steel. EAV 800 is perfect for controlling hot water or steam in a wide variety of applications. The insulating properties of PPSU minimise the propagation of heat from the fluid to the body. Römer's proven AVS push-in technology enables quick and easy assembly and disassembly without tools. Magnetic coils with different performance classes are available depending on requirements.
  • NSF certified and FDA compliant
  • Ø 4 and 6 connections
  • Fluid passage from 1.2mm to 3.0mm
  • Temperatures up to 130°C
  • Working pressure up to 16 BAR
DOWNLOAD DATA SHEET
  • No pressure increase on liquids
  • Flow noise reduced to a minimum
  • Wide pressure range
  • Applicable for compressed air and gas
  • Valve body in different materials
  • Long life span
  • Quiet
  • Direct drive
  • Stable and corrosion resistant
  • Solenoid coils in 4 classified performance classes
  • Available in single, flange and battery versions
  • Different sealing materials
  • Total separation of the fluid
  • Nominal diameter DN 1.5 to DN 2.5
  • Rated power 6W
  • NSF certified component

Pneumatic solenoid valves are usually 3 and 5-way with monostable or bistable function. Also available in the NAMUR version for direct coupling to pneumatic actuators.

Also for pneumatic logic systems or in ATEX environments.
