Temperature, pressure, conductivity, conductivity sensors for machine tools and systems in the food, pharmaceutical, chemical and all automation sectors.
Temperature probes
Smartflow
CW510L
Electronic flow regulators
Conductivity sensors
Pressure sensors
Manometers
Couplings - Quick couplings
AISI 316L flow regulators
Non-return valves in 316L stainless steel
Temperature probes
ITS Inline Temperature Sensor
Features
PPSU body
Seal material FPM or EPDM (FDA compliant)
Probe material Al2 O3
Existing sensor types: Pt 100; NTC 10k; NTC 47k,
Other types of sensors and thermocouples on request
ELSA fitting connection for 6 or 4 mm pipe
Operating pressure up to PN 20
Fluid temperature up to 135 °C (NSF approval at 100 °C)
Smartflow

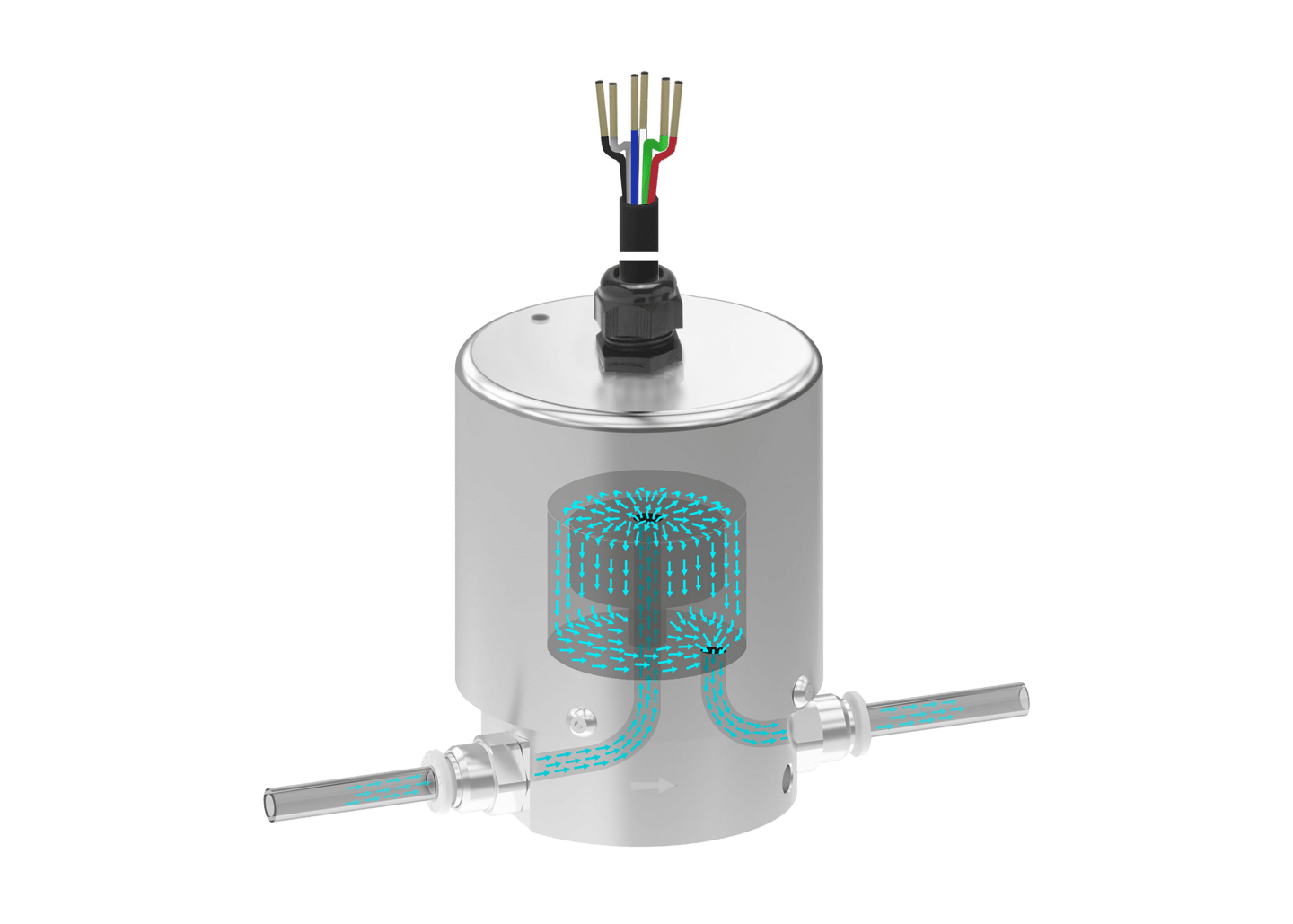

Smartflow
Pump with an innovative concept
Features
Excellent chemical resistance
Drive with specially developed BLDC motor
Absence of dead spaces that would encourage the formation of unwanted bacteria
Prevents microbiological buildup and growth
Maintenance-free, durable, reliable
Tight seal ensures wear-free operation and prevents leakage
Full passage and vacuum seal thanks to shaped gaskets
Two types of threads, BSPP, BSPT
Wide range available to satisfy the most demanding installations
Silicon Free
Applications
Agri-food industry
Coffee and vending machines
Food & Beverage
Medical
Empty
Electronic flow regulators
Electronic flow control valve EFC type
High performance PPSU plastic (polyphenylsulfone)
Motorized flow regulator for dosing liquid and gaseous fluids. In conjunction with the famous ELSA PPSU instant fittings, this valve is mainly used in the food and chemical industry. The control electronics integrated in the valve body allows the needle to be positioned continuously via an analog voltage signal. Through the linear motor stepping technology, a position can be maintained even without electrical voltage.
Features
FDA compliant PPSU valve body
EPDM or FPM gasket material (FDA compliant)
Needle material AISI316L, 1.4404
Nominal diameters from DN 0.5 - DN 3
ELSA instant fittings, PPSU, for 4 and 6 mm hose.
Working pressure PN 8
Fluid temperature up to 80 ° C
Integrated control electronics with analog input Us = 24 VDC (power supply) Uc = 0 - 10 VDC (control)
Linear stepper motor
Advantages
Optimized retention zones
Low hysteresis
Easy control
Customer-specific features possible (pin or control)
NSF Certification
Connection via ELSA fitting
Conductivity sensors
ICS Type Conductivity Sensor
High performance PPSU plastic material
Advantages
Optimal price-quality ratio
wide measuring range
small footprint
proven ELSA connection technology
thermally neutral measures
Integrated temperature sensor
integrated correction electronics
Pressure sensors
AVS Pressure sensor type IPS Inline Pressure Sensor
Features
PPSU body
Seal material FPM or EPDM (FDA compliant)
ceramic pressure measuring cell
ELSA fittings Connection for 6 or 4 mm hoses
Operating pressure up to 16 bar
Fluid temperature up to 140 ° C (NSF approved at 100 ° C)
Power supply 5 VDC
0.5-4.5 VDC output signal
evaluation system with temperature compensation
Measuring range 0-4 or 0-16 bar
Manometers
Manometers
Stainless steel pressure gauges
Customizable pressure gauges
Manometers for boiler room
Diaphragm pressure gauges for gas
Pressure gauges for dry industrial applications
Pressure gauges for industrial applications in glycerine bath
Accessories for pressure gauge
Couplings - Quick couplings
Quick couplings
Applications
The peculiar characteristics of these couplings are the ease of cleaning and the very low oil loss in connection and disconnection operations: both determine their uses. They are recommended for applications where the leakage of the fluid constitutes a potential danger for the safety of workers: in addition, the external ring of the female has a safety system to prevent accidental release of the male. Perfectly indicated in industrial plants and in
any sector of use if you want to avoid both the risk of environmental pollution and the contamination of the hydraulic circuit fluid. They have reduced pressure drops, higher flow rates and higher operating pressures than traditional series. Couplings of this type, generally called "FLAT FACE", are used to connect hydraulic tools on operating machines in the construction, road and railway construction and maintenance sectors, in the mining industry and in shipyards and ports.
Technical features
Interchangeability: ISO 16028
Occlusion: flat valve
Coupling system: ball crown
Connection: pushing the male part
Disconnection: by pulling back the ring
Threads: BSP - NPTF - BSPT
Sizes: 1/4 ", 3/8", 1/2 ", 3/4", 1 ", 1.¼", 1.½ ", 2"
Materials:
Female in high carbon steel with some induction hardened parts
Male in high carbon content steel, induction hardened
Valves in high carbon steel
Surface protection: zinc plating and Cr III passivation
C72 steel springs
High strength balls in 100 C6 steel
Seals: standard NBR and polyurethane, VITON on request
Anti-extrusion: PTFE
Operating temperature: NBR -20 ° C + 100 ° C
VITON -15 ° C + 180 ° C
AISI 316L flow regulators
Pneumatic flow regulators in stainless steel
Stainless steel flow controllers can be used to regulate the speed of a cylindrical bar as well as a gas flow in environments with high mechanical or chemical constraints. These regulators are suitable for food environments as they prevent contamination of the transported fluids. The design is optimized thanks to the use of smooth external surfaces that simplify cleaning procedures.
Features / Benefits:
Robust
- Suitable for corrosive environments
- Excellent mechanical and chemical resistance
- 100% tested for leakage in production
- No contamination of transported fluids
Optimised Design
- Smooth outer surfaces for easy cleaning
- Full compatibility with food environments
- Easy and precise adjustment
FEATURES
• PPSU body
• Sealing material FPM or EPDM (FDA compliant)
• Al2 O3 probe material
• Types of existing sensor: Pt 100; NTC 10k; NTC 47k,
• Other types of sensors and thermocouples on request
• Connection of ELSA fittings for 6 or 4mm tube
• Working pressure up to PN 20
• Fluid temperature up to 135 ° C (NSF approved at 100 ° C)
High performance PPSU plastic (polyphenylsulfone)
Motorized flow regulator for dosing liquid and gaseous fluids. In conjunction with the famous ELSA PPSU instant fittings, this valve is mainly used in the food and chemical industry. The control electronics integrated in the valve body allows the needle to be positioned continuously via an analog voltage signal. Through the linear motor stepping technology, a position can be maintained even without electrical voltage.
Features
FDA compliant PPSU valve body
EPDM or FPM gasket material (FDA compliant)
Needle material AISI316L, 1.4404
Nominal diameters from DN 0.5 - DN 3
ELSA instant fittings, PPSU, for 4 and 6 mm hose.
Working pressure PN 8
Fluid temperature up to 80 ° C
Integrated control electronics with analog input Us = 24 VDC (power supply) Uc = 0 - 10 VDC (control)
Linear stepper motor
Advantages
Optimized retention zones
Low hysteresis
Easy control
Customer-specific features possible (pin or control)
The peculiar characteristics of these couplings are the ease of cleaning and the very low oil loss in connection and disconnection operations: both determine their uses. They are recommended for applications where the leakage of the fluid constitutes a potential danger for the safety of workers: in addition, the external ring of the female has a safety system to prevent accidental release of the male. Perfectly indicated in industrial plants and in
any sector of use if you want to avoid both the risk of environmental pollution and the contamination of the hydraulic circuit fluid. They have reduced pressure drops, higher flow rates and higher operating pressures than traditional series. Couplings of this type, generally called "FLAT FACE", are used to connect hydraulic tools on operating machines in the construction, road and railway construction and maintenance sectors, in the mining industry and in shipyards and ports.
Technical features
Interchangeability: ISO 16028
Occlusion: flat valve
Coupling system: ball crown
Connection: pushing the male part
Disconnection: by pulling back the ring
Threads: BSP - NPTF - BSPT
Sizes: 1/4 ", 3/8", 1/2 ", 3/4", 1 ", 1.¼", 1.½ ", 2"
Materials:
Female in high carbon steel with some induction hardened parts
Male in high carbon content steel, induction hardened
Valves in high carbon steel
Surface protection: zinc plating and Cr III passivation
C72 steel springs
High strength balls in 100 C6 steel
Seals: standard NBR and polyurethane, VITON on request
Anti-extrusion: PTFE
Operating temperature: NBR -20 ° C + 100 ° C
VITON -15 ° C + 180 ° C
Stainless steel flow controllers can be used to regulate the speed of a cylindrical bar as well as a gas flow in environments with high mechanical or chemical constraints. These regulators are suitable for food environments as they prevent contamination of the transported fluids. The design is optimized thanks to the use of smooth external surfaces that simplify cleaning procedures.
Features / Benefits:
Robust
• Suitable for corrosive environments
• Excellent mechanical and chemical resistance
• 100% tested for production losses
• No contamination of the transported fluids
Optimised Design
• Smooth exterior surfaces for easy cleaning
• Full compatibility with food environments
• Simple and precise adjustment
• Fluids: Compressed air 7822: all compatible fluids based on the seals used (FKM or PTFE)
• Materials: 316L stainless steel, FKM
• Pressure:
7810-7812: Vacuum at 10 bar
7820: Vacuum at 16 bar
7822: Vacuum at 40 bar
• Temperature:
7810-7812: 0 ° C to +70 ° C
7820-7822: -15 ° C to +120 ° C
Regulations:
• DI: 2002/95 / CE (RoHS)
• RG: 1907/2006 (REACH)
• DI: 97/23 / CE (PED)
• RG: External components: 21CFR (FDA)
• RG: External components: 1935/2004 / CE
Product Types:
• Exhaust flow regulator, male / female BSPP and metric thread
• Bidirectional flow regulator, male / female BSPP and metric thread
• In-line unidirectional flow regulator, BSPP female thread
• In-line bidirectional flow regulator, BSPP female thread
